4 Axis Aluminum Profile Machining Center



● On-line with ERP software to realise automatic machining by code scanning.

● For profile mounting holes, running grooves, locking holes, shaped holes, end milling and other machining processes Gantry frame structure: smoother running.

● Stability and precision: flat guide rails are used on all axes, high-quality imported servo motors, ball screws, linear guides and bearings and other components to ensure that the equipment has a high degree of stability and reliability, the machine tool adopts a five-point support for greater stability.

Powerful electric spindle: In order to get the best machining performance, this machine adopts the original Italian HSD electric spindle with the speed of 24000 rpm, which can complete the machining of any angle within 180°, with high working efficiency, and achieve the performance of high-speed milling, high-speed drilling and high-speed tapping.

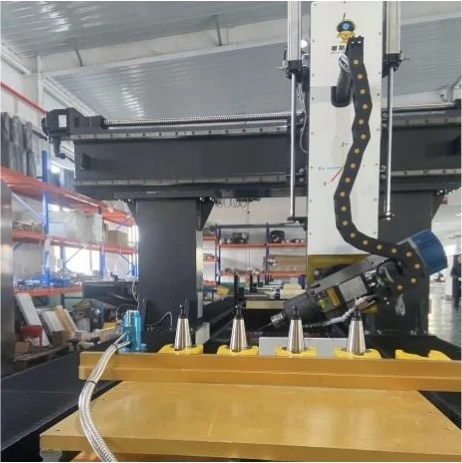

● Tool magazine: The perfect design of 9 tool magazines ensures quick tool change and precision.

● Perfect control technology: Adopting Germany PA control system, perfect operation interface, only one clamping can complete the machining of three surfaces. Unique AI contour control, this advanced function can guarantee high precision at high cutting speed. It also avoids tool path error under high speed machining and ensures smooth acceleration.

● Intelligent fixtures: powerful software support, fixtures can be automatically placed. The fixtures can be freely combined to process workpieces more conveniently.

● Extra large machining range: Unique extra large size machining range in China.

● Dual work area: dual work area processing interactive loading without stopping, more efficient.

● Lubrication: Adopting advanced micro-lubrication system to improve the working environment, more energy-saving and environmentally friendly.

● Protection: humanised infrared safety protection function to protect the operator's safety.



X-axis stroke	7000~9000mm
Y-axis stroke	1300mm
Z-axis stroke	550mm
X-axis running speed	0~80m/min
Y-axis running speed	0~30m/min
Z-axis running speed	0~20m/min
Spindle speed	0~24000rpm
Spindle power	12kW
Spindle rotation range	-90° ~ 0° ~+90°
Tool magazine	12 tool positions
Max. installation length of cutter	165mm
Total power	23kW
Fixture station	8
Gas consumption	15L/min
Machining size range	650*250*7000mm (above) 435*250*7000mm (side)
Overall dimensions	11300*2350*2550mm
Weight	about 5000kg
