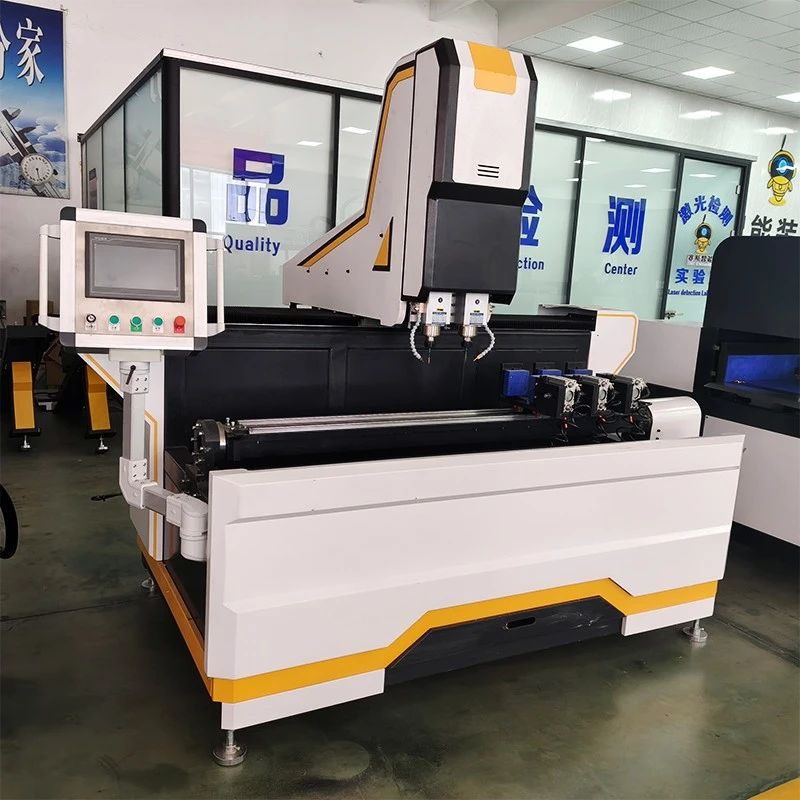

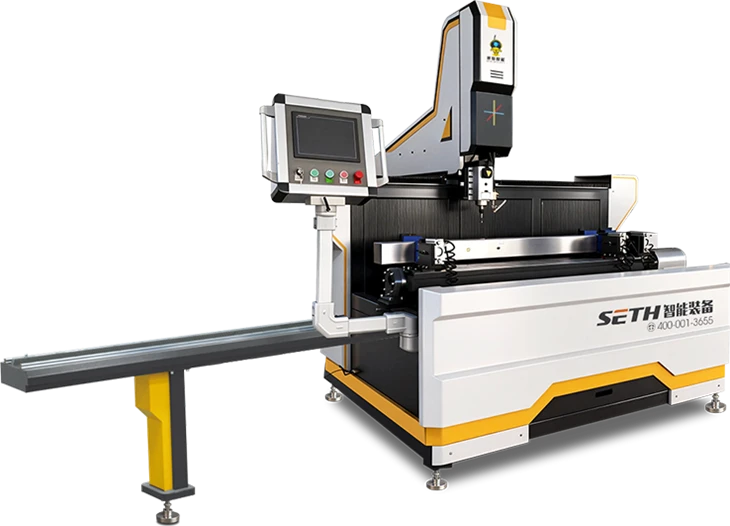

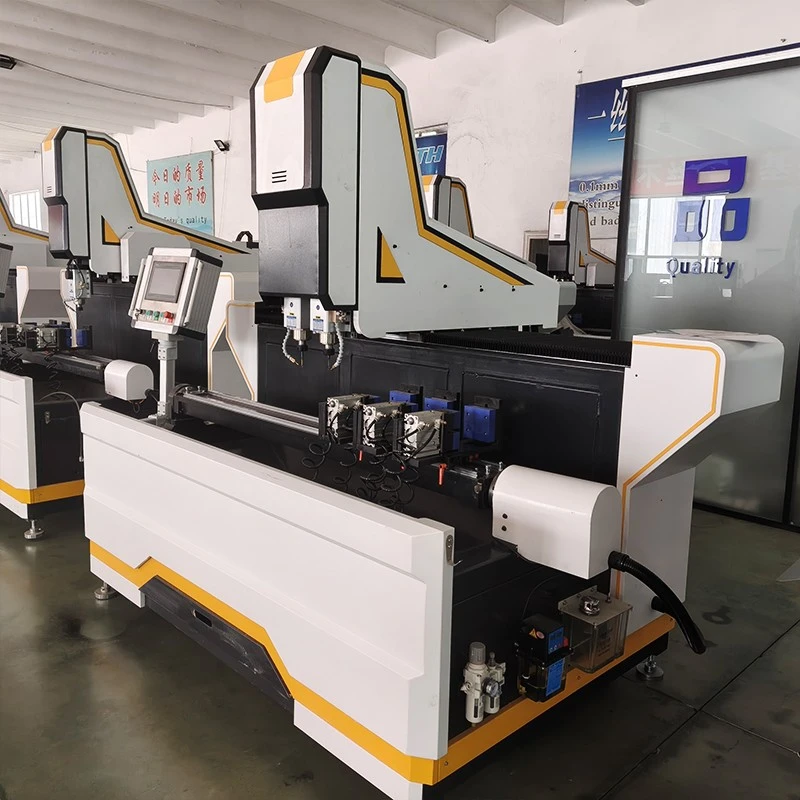

Aluminum Profile CNC 1.6m Driling Miling Machine

☆ This equipment is suitable for processing round holes, groove holes, lock holes, and irregular holes in industrial aluminum alloy profiles, window and door frames, curtain wall aluminum alloy profiles, as well as machining processes such as milling, chamfering, and surface engraving on aluminum profiles.

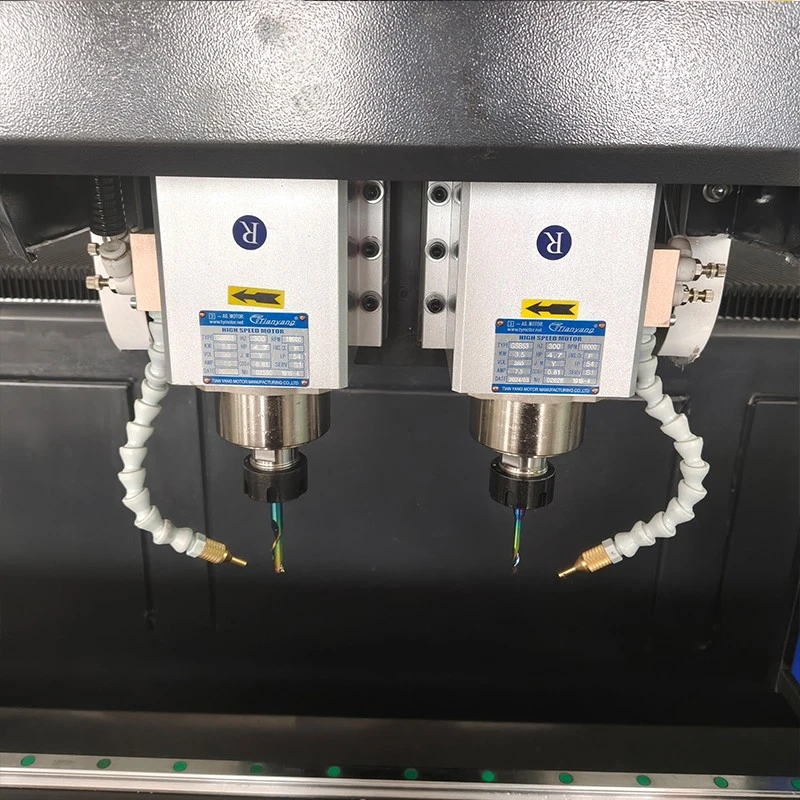

☆ The main shaft features a wind-cooled electric main shaft, with a power output of 6.5 kW and a rotational speed range of 0 to 18,000 rpm. It boasts high precision, excellent safety, and high reliability.

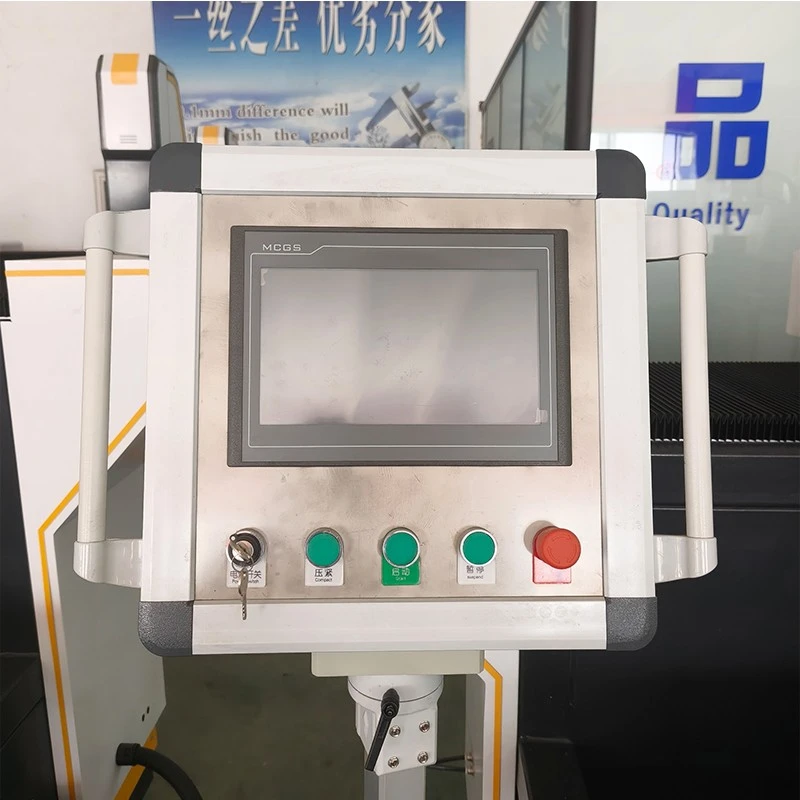

☆ Utilizes CNC (Computer Numerical Control) system. Equipped with professional CAD-CAM programming software. Automatically converts machining G codes, making it easy to operate, highly efficient, and reducing labor intensity.
☆All the motion joints utilize imported guide rails and slides. The X-axis employs high-precision bevel gears and bevel rail transmissions, while the Y-axis and Z-axis use high-precision ball screw transmissions. The transmissions are smooth, effectively enhancing the overall machine's precision.
☆The workbench can be flipped 180 degrees. –90 degrees to 0 degrees to +90 degrees, allowing for three-sided machining with a single fixture for the profile material. ☆ When machining deep through holes (irregular holes), the worktable is flipped to enable deep hole processing, which improves efficiency and results in high-quality work.
☆The lubrication system uses a manual pump. The cutting tools are equipped with a controlled spray cooling device.
☆Key electrical components, circuit breakers, and AC contactors all use products from Schneider Electric of France.
☆The main components of the machine tool are made of steel and have undergone heat treatment.
