Aluminum Window End Milling Machine
Milling cutter diameter:φ350mm
Workbench feed stroke:0－750 mm
Max rotary speed:2800r/min
Motor adjustment stroke:0－85 mm
Maximum tenon size:40 mm
Aluminum window end milling machine is used to process the reinforced center stiffeners on the end faces of system doors and windows to adapt to the fit of different cross-section profiles.
Feature of aluminum window end milling machine
☆ The tool movement is driven by a linear square rail motion pair and a high-precision ball screw to ensure the stability and accuracy of the milling cutter. The feed speed is adjustable and the tool can be withdrawn quickly. High precision.

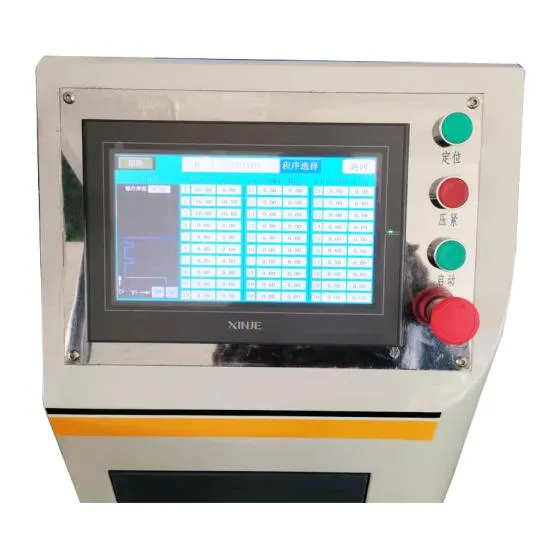

☆ This machine adopts PLC CNC programming system. You can set the advance and retraction dimensions of the tool, the upper and lower offset dimensions and the milling pin length by yourself.
☆ Accurate positioning and simple operation. It solves the difficulty for users to repeatedly calibrate different types of profiles, and the cumbersome process of frequently making knives for different profiles. This machine can be programmed once and stored permanently, which improves production efficiency and milling accuracy.
Specification of aluminum window end milling machine
|
Power supply: |
380V/50Hz |
Air pressure: |
0.6~0.8MPa |
|
Spindle motor power: |
4.4kW |
Milling depth： |
70mm |
|
Milling cutter diameter: |
Φ250 |
Workbench size: |
510*380mm |
|
Max rotary speed: |
2840rpm |
Height of clampable profile |
40-180 mm |
|
Workbench size: |
300×320 mm |
Overall dimensions: |
2300*1700*1900mm |
Production of aluminum window end milling machine
