UPVC Arch Bending Machine

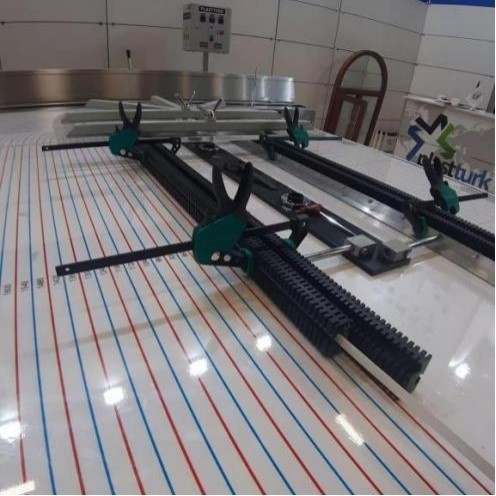

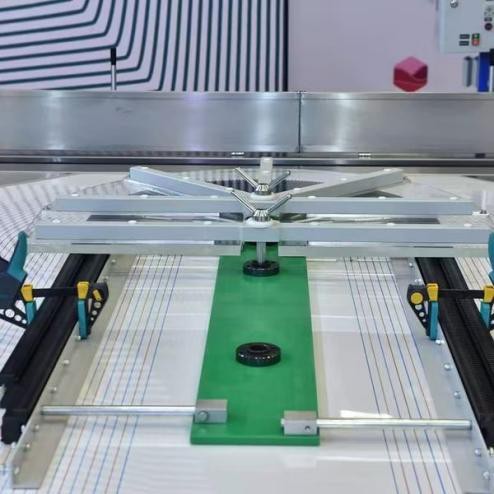

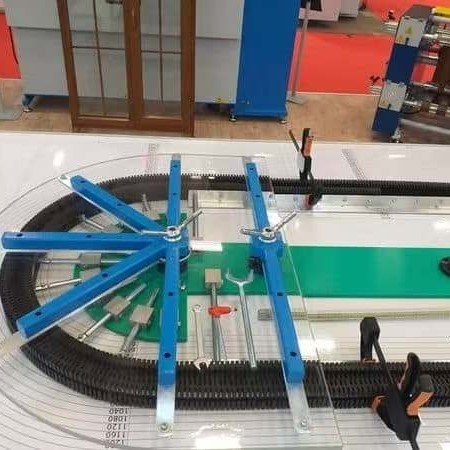

Plastic profile round arc machine is a special equipment for producing round arc plastic doors and windows, which mainly includes bending and shaping table, heating groove, shaping belt and board rod and other parts.

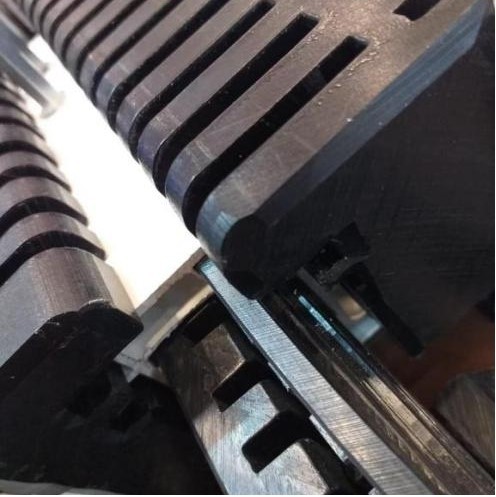

The shaping belt and filling strip can be customised according to the specifications of the profile.

Plastic profile arc machine adopts electric heating medium oil, and then through the medium oil heating profile process, can be bent and shaped into the required diameter of 500-1800 mm semicircle or any arc arc arc on the table surface.

Plastic profiles arc organ closed oil tank below the oil drain, you can add the appropriate amount of heating medium so that it can be full of profiles to be heated over the pallet. The pallet can be lifted out of the oil or dropped into the oil by a handle on the outside of the oil tank.

On the other side of the working table, there is an oil catching groove to recycle the heating medium that flows out when bending the profiles, which makes the working environment clean and tidy and saves the medium oil.

Plastic profile arc machine has reliable performance, safe operation, high efficiency and so on.

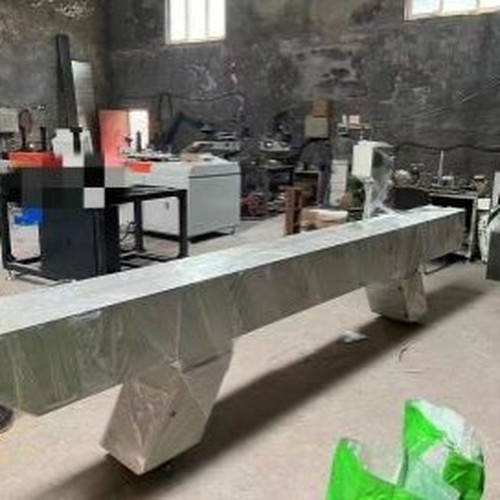

Plastic profile arc machine heating tank can put 3800mm profile, can be customised according to the need to extend.

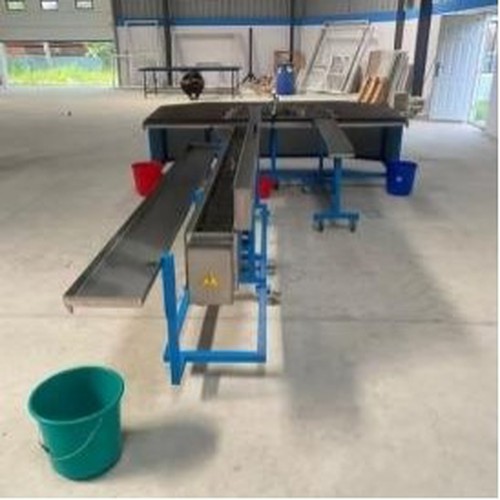

●Composed of electric heating furnace and bending table.

●Customised different shaping strip filler can be processed different specifications of the profile

●After softening by heating, it can process the shape of semi-circle with radius 300-1800mm.

●Input power: 220V/50HZ 6Kw

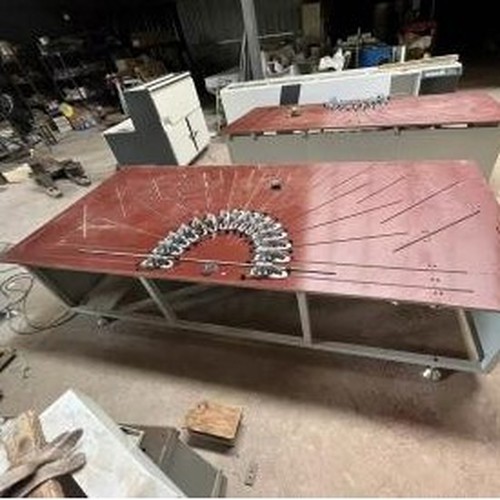

●Working table: L2850*W1200*H700

●Heating tank size: L3800*W300*H650mm

●Heating temperature: 90-130C
