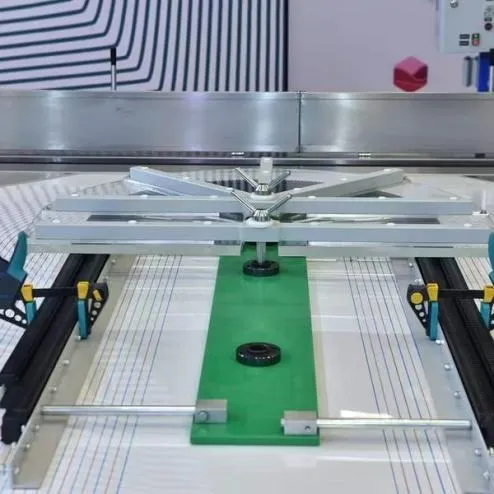

UPVC Profile Bending Machine

UPVC bending machine is a kind of mechanical equipment specially used for bending UPVC (unplasticised polyvinyl chloride) pipes.UPVC pipes are widely used in the fields of construction, drainage, chemical industry and so on because of its corrosion-resistant, light weight, easy installation and so on. The round bender bends UPVC pipe into the desired shape and angle by mechanical force, and is widely used in pipeline installation, furniture manufacturing, decorative engineering and other industries.

It is widely use in many fields like the following:

UPVC window and door

1. UPVC Window Bending Machine special for bending UPVC window profile.
2. Electrical air heating to warm up the profile to become soft.
3. Profile bending within the diameter 800~1800mm

Working Principle

Although the working principle of a specific UPVC round bending machine may vary from model to model and manufacturer to manufacturer, the basic principle is usually similar to that of a steel bar bender. According to Search Result 2, the main structure of a rebar bender consists of a horizontal working disc rotating on a vertical axis. By placing the UPVC pipe in a specific position and using the rotating motion of the working disc, the pipe can be bent.

The steps are as follows

Placing the pipe: the UPVC pipe is placed in the specified position on the working disc.

Fixed pipe: through the support pins or other fixed devices to fix the pipe to prevent movement in the bending process.

Start the equipment: start the bending machine, the working disc begins to rotate.

Bending process: As the working disc rotates, the pipe is gradually bent into the desired shape and angle.

Stop and take down the finished product: after the bending is completed, stop the machine and take down the bent UPVC pipe.

Application areas

construction industry: for pipe installation, drainage systems, etc..

Furniture manufacturing: used to make a variety of furniture bending parts.

Decorative engineering: for the production of interior decoration, guardrails and so on.

Precautions

Safe operation: to ensure that the equipment is operated in a safe state to avoid accidents.

Correct placement of the pipe: ensure that the pipe is placed in the correct position to obtain the desired bending effect.

Regular maintenance: regular maintenance and repair of equipment to ensure its normal operation.

●Composed of electric heating furnace and bending table.

●Customised different shaping strip filler can be processed different specifications of the profile

●After softening by heating, it can process the shape of semi-circle with radius 300-1800mm.

●Input power: 220V/50HZ 6Kw

●Working table: L2850*W1200*H700

●Heating tank size: L3800*W300*H650mm

●Heating temperature: 90-130C
