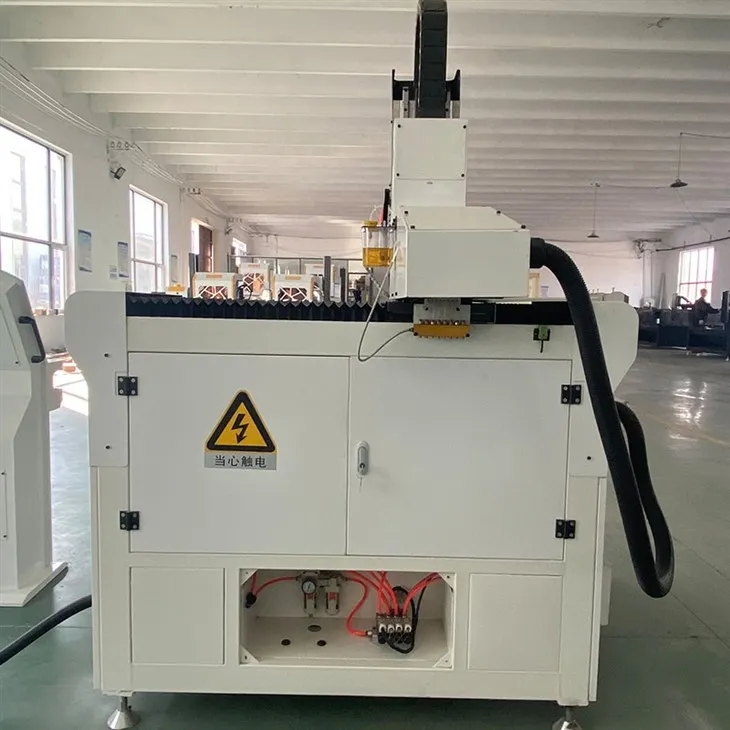

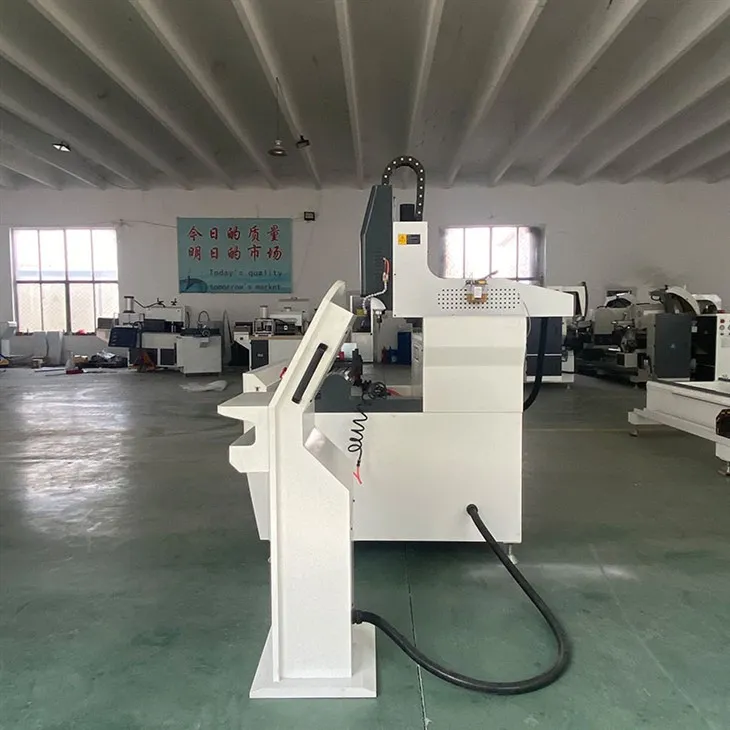

Aluminum Window Milling Machine
Y-axis transverse travel:300mm
Z-axis vertical travel:280mm
X-axis speed:0~50m/min
Y-axis speed:0~15m/min
Z-axis speed:0~15m/min
Aluminum Window Milling Machine is suitable for machining round holes, slotted holes, lock holes and special-shaped holes of industrial aluminum alloy profiles, doors, windows and curtain wall aluminum profiles, as well as milling, chamfer and plane carving of aluminum profiles.
Feature of Aluminum Window Milling Machine
Ø Equipment features
☆ Suitable for industrial aluminum alloy profile, doors and windows, curtain wall aluminum alloy profile of the round hole, slot hole, lock hole, special-shaped hole, as well as aluminum profile milling, chamfer, plane carving and other processes.
☆ Spindle adopts air-cooled spindle, power 6 kw, speed 0~18000 rpm, high precision, good safety and high reliability.
☆ Adopt CNC numerical control system. Equipped with professional CAD-CAM programming software. Automatic conversion processing G code, simple operation, high efficiency, low labor intensity.
☆ Table 180 degrees. -90 degrees ~0 degrees ~+90 degrees, profile clamping can achieve three-sided processing
☆ Processing deep hole (special hole), through the table flip to achieve deep hole processing,improve efficiency, good quality.
☆ Manual pump oil supply system, tool system control spray cooling device.
☆ Main parts of the machine tool adopt steel structure after aging treatment.
Specification of Aluminum Window Milling Machine
Size: 1200mm
|
Power supply: |
380V/50Hz |
Air pressure: |
0.6~0.8MPa |
|
Total power: |
6.0kw |
Main axis power: |
3.0kw |
|
Fixture station: |
2 |
Gas consumption: |
4L/min |
|
Max rotary speed: |
18000r/min |
X-axis longitudinal travel: |
1200mm |
|
Y-axis transverse travel: |
300mm |
Z-axis vertical travel: |
280mm |
|
X-axis speed: |
50m/min |
Y-axis speed: |
15m/min |
|
Z-axis speed: |
15m/min |
Overall dimension: |
2600*2000*2350mm |
|
Weight: |
800kg |
Production of Aluminum Window Milling Machine
