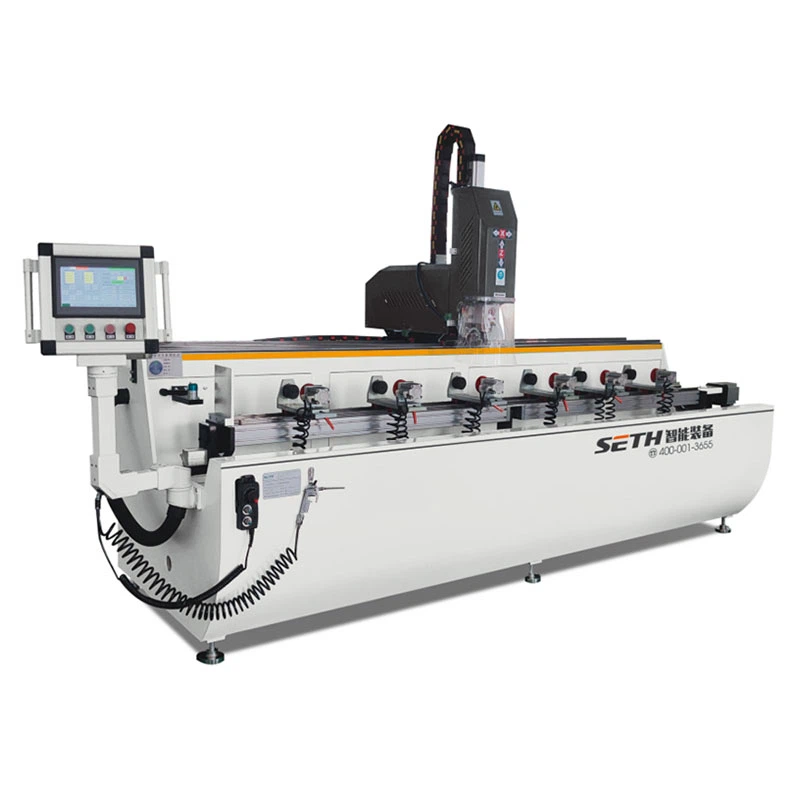

Window Door Drilling Milling Machine
Fixture station:2
Gas consumption:4L/min
X-axis speed:0~50m/min
Y-axis speed:0~15m/min
Z-axis speed:0~15m/min
Window Door Drilling Milling Machine is suitable for drilling, milling slots, round holes, special-shaped holes, plane engraving and other processing of aluminum alloy profiles.
Feature of Window Door Drilling Milling Machine
Ø Equipment features
◎The system adopts CNC numerical control system.
◎Using electric spindle, it has high precision, good safety and high reliability.
◎The x-axis, Y-axis, and Z-axis use servo motors to drive high-density ball screw transmission, with smooth transmission and high precision.
◎Graphic programming, simple operation, high efficiency and low labor intensity. Plus infrared positioning.
◎The workbench can be turned over 180º, -90º～0º～+90º. The profile can be processed on three sides in one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be achieved by turning the workbench over, with high efficiency and high precision.
Specification of Window Door Drilling Milling Machine
Size: 1200mm
|
Power supply: |
380V/50Hz |
Air pressure: |
0.6~0.8MPa |
|
Total power: |
6.0kw |
Main axis power: |
3.0kw |
|
Fixture station: |
2 |
Gas consumption: |
4L/min |
|
Max rotary speed: |
18000r/min |
X-axis longitudinal travel: |
1200mm |
|
Y-axis transverse travel: |
300mm |
Z-axis vertical travel: |
280mm |
|
X-axis speed: |
50m/min |
Y-axis speed: |
15m/min |
|
Z-axis speed: |
15m/min |
Overall dimension: |
2600*2000*2350mm |
|
Weight: |
800kg |
Production of Window Door Drilling Milling Machine
